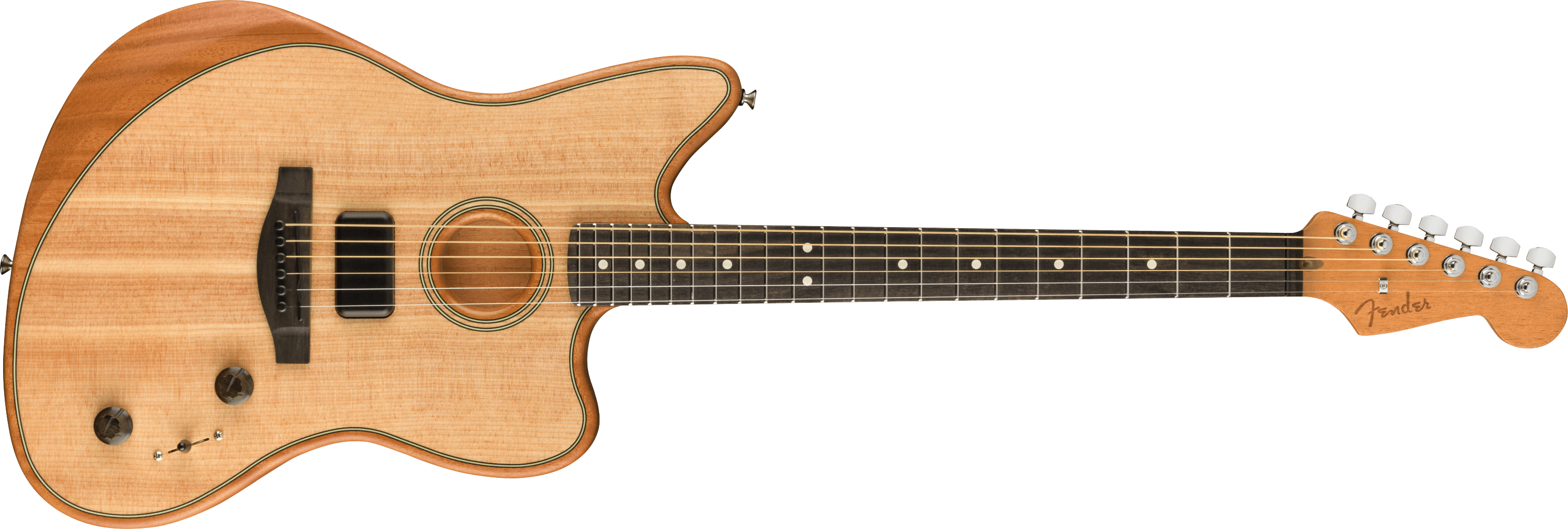

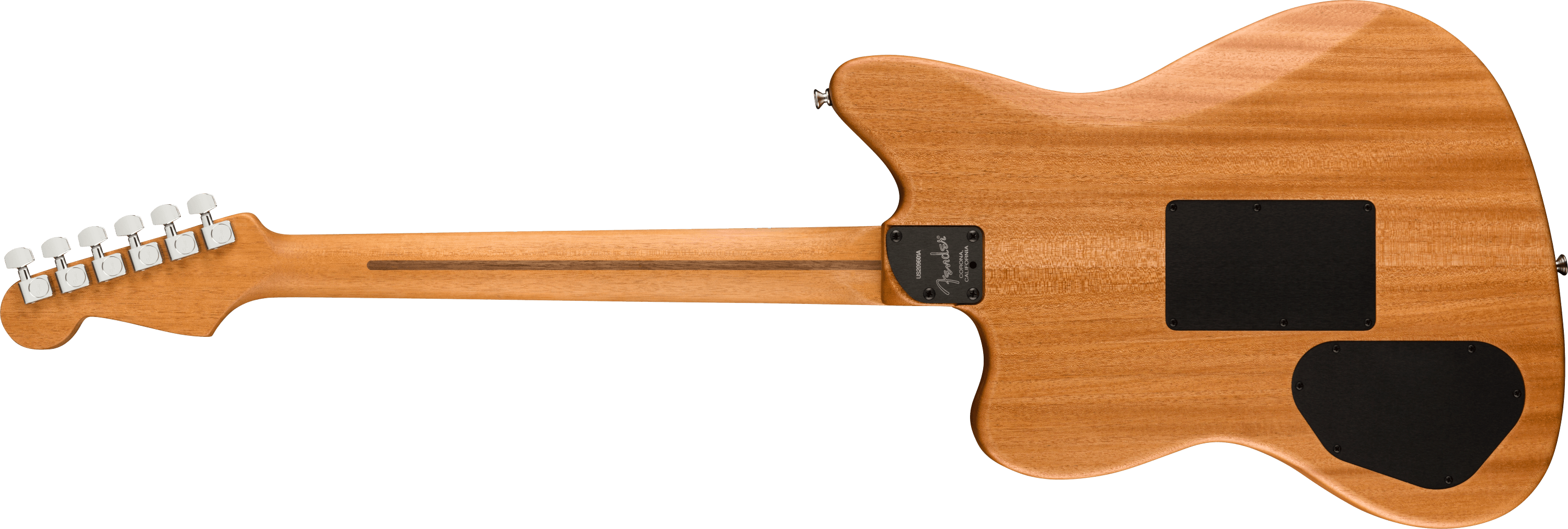

The American Acoustasonic® Jazzmaster® represents the next phase of purposeful innovation that drives Fender acoustic guitars. The power of the Fender and Fishman®-designed Acoustic Engine is sure to deliver true inspiration. From acoustic shapeshifting to electric rhythm tones, this extremely versatile guitar opens a new door to discovering endless sonic possibilities.
Features
Three pickup systems: new Fender Acoustasonic Shawbucker; Fishman Under-Saddle Transducer; Fishman Acoustasonic Enhancer
Cutting-edge acoustic-electric guitar
Acoustic Engine delivers a new and unique set of acoustic and electric voices
Blend Knob selects and blends voices
Patented Stringed Instrument Resonance System (SIRS)
Integrated forearm and back contour, and mahogany neck
Specs:
Body
Mahogany
Body Back
Mahogany
Body Finish
Polyester Satin Matte
Body Material
Mahogany
Body Shape
Modified Jazzmaster®
Body Sides
Mahogany
Body Style
Acoustasonic
Body Top
Solid Sitka Spruce
Bracing
Transverse
Cutaway
Yes
Purfling
Black/Cream/Black
Rosette
2-Ring B/W/B
Sound Hole
WaterFall Sound Port
Electronics:
Controls
Master Volume, "Blend" Knob, 5-Way Switch
Special Electronics
3-pickup configuration: Under-Saddle Piezo/Internal Body Sensor/Acoustasonic Shawbucker Magnetic
General:
Color
Natural
Orientation
Right-Hand
Product Name
American Acoustasonic® Jazzmaster®, Natural, Ebony Fingerboard
Series
American Acoustasonic®
Hardware:
Bridge
Modern Asymmetrical
Bridge Pins
Graph Tech® TUSQ®
Hardware Finish
Chrome
Pickguard
None
Strap Buttons
American Series
Strings
Fender® Dura-Tone® 860CL Coated Phosphor Bronze (.011-.052 Gauges), PN 0730860405
Tuning Machines
Fender® Standard Cast/Sealed Staggered
Measurements:
Body Depth
1.75" (44.45 mm)
Fret Size
Narrow Tall
Scale Length
25.5" (64.77 cm)
Neck:
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane
Neck Material
Mahogany
Neck Shape
Modern "Deep C"
Number of Frets
22
Nut Material
Graph Tech® TUSQ®
Nut Width
1.6875" (42.86 mm)
Position Inlays
White Dot
String Nut
Graph Tech® TUSQ®
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" American Series
